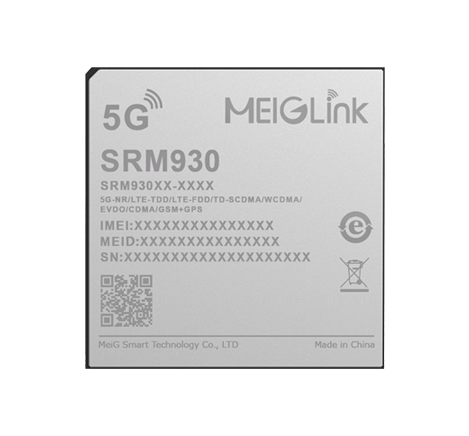

SRM930ϵÁÐÄ£×é»ùÓÚ¸ßͨ5G SoC QCM6490ƽ̨¿ª·¢¡£Ä£×é½ÓÄɸßͨKryo? 6xx CPU£¨1* A78 2.7GHz +3*A78 2.4GHz+ 4* A55 1.9GHz£©£¬6nm FinFET ÖƳ̣¬64bit ARM V8 Äںˡ£ÄÚÖÃAdreno? GPU 635£¬Ö§³ÖOpenGL ES 3.2£¬Vulkan1.x£¬Ö§³ÖOpenCL 2.0¡£Ä£×éÄÚÖÃAI ´¦Öóͷ£Æ÷Dual HVX ºÍ4K HMX£¬AI ËãÁ¦Áè¼Ý10 Tops¡£ÄÚÖÃAdreno? VPU 633£¬×î¸ßÖ§³Ö4K30 ÊÓƵ±àÂë»ò4K60 ÊÓƵ½âÂ룬֧³ÖH.264/H.265¡£Ä£×é´îÔØAndroid 11²Ù×÷ϵͳ£¬ÄÚÖô洢Ϊ64GB+4GB£¨»ò128GB+6GB£©£¬Ö§³Ö5G NR sub-6Ghz£¬Ö§³ÖDL 4x4 MIMO, UL 1x1 MIMO£¬Ö§³ÖNSA ºÍSA£¬¼¯³ÉL1+L5 GPS£¬¼¯³ÉWIFI ¼°BT ¹¦Ð§¡£
SRM930ϵÁÐÄ£×鼯³ÉÁ×Æ»ºñµÄ¹¦Ð§½Ó¿Ú£¬°üÀ¨LCM¡¢´¥ÃþÆÁ¡¢ÉãÏñÍ·¡¢Âó¿Ë·ç¡¢ÑïÉùÆ÷¡¢UART½Ó¿Ú¡¢USB½Ó¿Ú¡¢I2C½Ó¿Ú¡¢SPI½Ó¿Ú£¬PCIe½Ó¿ÚµÈµÈ£»¿ÉÌṩÓïÒô¡¢¶ÌÐÅ¡¢Í¨Ñ¶²¾£¬¿ÉÆÕ±éÓ¦ÓÃÓÚ5GÍøÂçϵÄÊÓƵ¼Í¼ÒÇ¡¢Öǻۼݲգ¬ÖÇÄÜPOSÊÕÒø»ú¡¢ÎïÁ÷Öնˡ¢VR Camera¡¢ÖÇÄÜ»úеÈË¡¢ÊÓƵ¼à¿Ø¡¢°²·À¼à¿Ø¡¢ÖÇÄÜÐÅÏ¢ÊÕÂÞ×°±¸¡¢ÖÇÄÜÊÖ³ÖÖնˡ¢ÎÞÈË»úµÈ²úÆ·¡£
Ö÷ÒªÓÅÊÆ£º
¡ñ Ö§³Ö5G NR sub-6Ghz£¬Ö§³ÖDL 4 ¡Á 4 MIMO SA/NSA mode and UL 1 ¡Á 1 MIMO SA mode
¡ñ Ö§³ÖWIFI 6E£¬2x2 MU MIMO
¡ñ ¸ßAI ËãÁ¦
¡ñ Ö§³ÖË«ÆÁÒìÏÔ(FHD+@60fps DSI + 4K@60fps DP)
¡ñ 5 ·ÉãÏñÍ·½Ó¿Ú£¬3 ·Bayer + 2 ·RDI
¡ñ ¼¯³ÉL1+L5 GNSS ˫Ƶ¶¨Î»£¬Öª×ã²î±ðÇéÐÎÏ¿ìËÙ¡¢¾«×¼¶¨Î»µÄÐèÇó
¡ñ ÊÓƵ֧³Ö4K@30fps ¼ÖÆ»ò4K@60fps ²¥·Å
¡ñ ½Ó¿Ú¸»ºñ£ºUSB / PCIe / SPI / UART / ...
| »ù±¾ÊôÐÔ£º | |
| ²úÆ·Ðͺţº | 5GÖÇÄÜÄ£×éSRM930 |

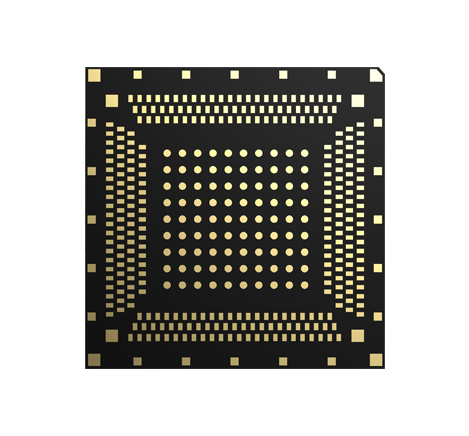

| ·â×°ÌØÕ÷£º | LGA·â×° |
| ²Ù×÷ϵͳ£º | Android 11.0 |
| ´æ´¢£º | 64GB UFS+4GB LPDDR4x £¨Ä¬ÈÏ£© 128GB UFS+6GB LPDDR4x £¨¿ÉÑ¡£© 128GB UFS+8GB LPDDR4x £¨¿ÉÑ¡£© |
| ÊÂÇéζȣº | -30¡ãC~+75¡ãC |
| Öü´æζȣº | -40¡ãC ~ +75¡ãC |
| ÊÂÇéµçѹ£º | 3.5V~4.35V£¨µä·¶Öµ£º3.8V£© |
| ³ß´ç(mm)£º | 47.0¡Á48.0¡Á3.0mm |
| ÖØÁ¿£º | Ô¼13.0g |
| ÈÏÖ¤£º | CCC* |
| ÌØÕ÷£º | |
| WLAN£º | Wi-Fi 6E(2.4G/5G, 2x2 MU MIMO, 802.11 a/b/g/n/ac/ax) |
| À¶ÑÀ£º | BT5.2 |
| GNSS£º | GPS/GLONASS/BeiDou, L1+L5 GPS |
| Modem£º | ? 3GPP Rel.15 5G NR ? sub-6 GHz 5G NR ? 256 QAM uplink/downlink in sub-6 GHz ? Rel.15 LTE multi-mode modem |
| Ö§³ÖË«ÆÁÒìÏÔ | |
| Ö§³ÖË«¿¨Ë«´ý | |
| ͨ¹ý USB ¾ÙÐй̼þ¸üР| |
| ͨÓýӿڣº | |
| PCIe ½Ó¿Ú£º1 ×飨PCIe Gen 3 2-lane£© | |
| I2C ½Ó¿Ú£º5 ×é | |
| (U)SIM ½Ó¿Ú£º2 ×飨1.8V/2.95V£© | |
| UART ½Ó¿Ú£º3 ×飨֧³ÖÓ²¼þÁ÷¿Ø£¬×î¸ßËÙÂÊ¿É´ï(4Mbps£© | |
| SD ¿¨½Ó¿Ú£º1 ×飨֧³Ö SD 3.0, 4-bit SDIO,dual-voltage£© | |
| SPI ½Ó¿Ú£º2 ×é | |
| ADC ½Ó¿Ú£º2 ×é | |
| GPIO ½Ó¿Ú£º19 ×é | |
| Âí´ïÇý¶¯½Ó¿Ú£º1 ×é | |
| Flashlight ½Ó¿Ú£º2 · | |
| LED ָʾ½Ó¿Ú£º4 ×é | |
| PWRKEY £º1.8V£¬ÄÚ²¿ÉÏÀ | |
| ÌìÏß½Ó¿Ú£º | Ö÷ÌìÏß*4¡¢GNSS ÌìÏß*1¡¢Wi-Fi&BT ÌìÏß |
| USB ½Ó¿Ú£º | |
| Ë« USB ½Ó¿Ú£º1 x USB 3.1 Gen1 + 1 x USB 2.0 Ö§³Ö USB OTG | |
| ÒôƵ½Ó¿Ú£º | |
| Ä£ÄâÊä³ö£º | ÑïÉùÆ÷¡¢ÌýͲ¡¢¶ú»ú |
| Ä£ÄâÊäÈ룺 | 3 ×éÂó¿Ë·ç£¬Ö§³Ö 1 ×é½µÔëÂó¿Ë·ç |
| Êý×Ö½Ó¿Ú£º | 4 x MIS ½Ó¿Ú£¬2 x I2S ½Ó¿Ú£¬Ö§³Ö Audio over USB Type-C |
| ´¥ÃþÆÁ½Ó¿Ú£º | |
| I2C ½Ó¿ÚµçÈÝʽ´¥ÃþÆÁ | |
| ÉãÏñÍ·½Ó¿Ú£º | |
| 5 x 4-lane CSI D-PHY 1.2 or C-PHY 1.2 | |
| 3 ¡Á 14 bit ISP + 2 ¡Á lite ISP, 22 + 22 + 22 MP or 64MP 30fps | |
| ½Ó¿ÚÐÅÏ¢£º | |
| ÏÔʾ½Ó¿Ú£º | |
| FHD+@60fps MIPI-DSI + 4K@60fps Displayport | |
| One 4-lane DSI, D-PHY 1.2 or C-PHY 1.2 | |
| DisplayPort v1.4w over USB Type-C | |
| ¶àýÌåÐÅÏ¢£º | |
| ÊÓƵ±à½âÂ룺 | |
| Decode : 4K@60fps H.264/H.265/VP9 | |
| Encode : 4K@30fps H.264/H.265 | |
| Concurrency : 1080p60 D +1080p60 E or 4K30 D + 1080p30E | |
| SRM930ϵÁÐƵ¶ÎÐÅÏ¢£º | |
| SRM930-C: | |
| 5G-NR: | N1/N28/N41/N78/N79 |
| LTE-FDD: | B1/B3/B5/B8 |
| LTE-TDD: | B34/B38/B39/B40/B41 |
| SRM930-E: | |
| 5G-NR: | N1/N3/N20/N28/N78 |
| LTE-FDD: | B1/B3/B5/B7/B8/B20 |
| LTE-TDD: | B38/B40/B41 |
| SRM930-J: | |
| 5G-NR: | N1/N3/N77/N78/N79 |
| LTE-FDD: | B1/B3/B8/B9/B19/B26/B28 |
| LTE-TDD: | B41 |
| SNM930: | |
| ½öÖ§³Ö Wi-Fi & BT | |
| ÆäËû°æ±¾£º | |
| TBD | |
| ±¸×¢£º*Ñз¢ÖÐ | |
